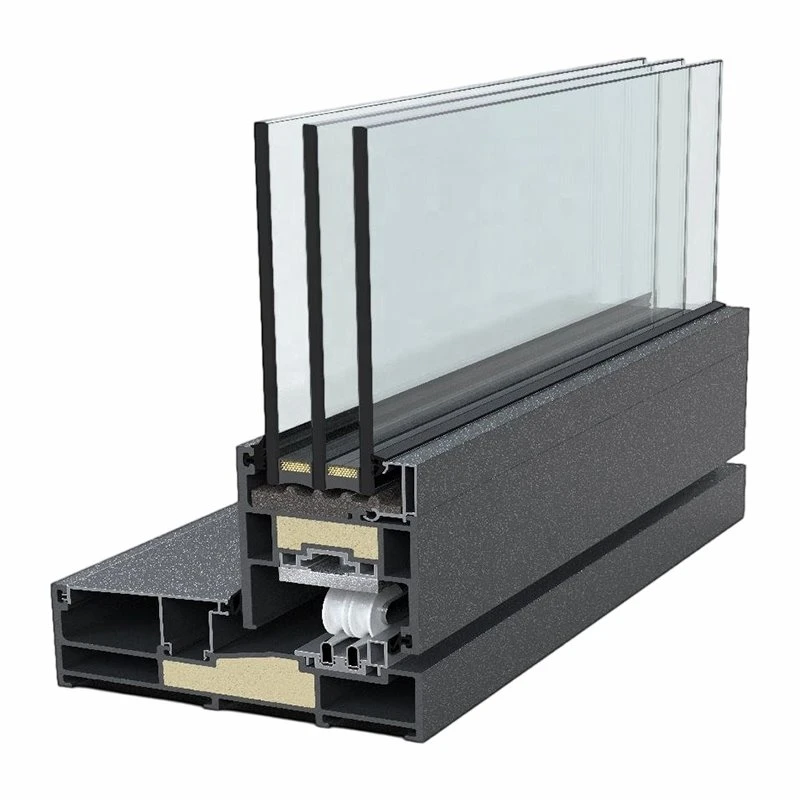

MS142 Fiberglass Sliding Windows

MS142 Fiberglass Sliding Windows

Details
Processing Service: Cutting, Mould opening, Punching
Production Technology: Pultrusion
Model: MS142 Fiberglass Sliding windows
Surface Treatment: Water based Polyurethane paint, full RAL color customizable
Profile Type: Door & Window Frame Profiles, Sunroom Profiles
Production Process: Pultrusion Molding
Category
Fiberglass Sliding Windows

Send Inquiry
Description
Technical Parameters

Henan Enbuess Composite Materials Co., Ltd. is one of the leading manufacturers and suppliers of ms142 fiberglass sliding windows in China. We are committed to providing high quality customized service for global clients. If you're going to buy high strength ms142 fiberglass sliding windows made in China, welcome to get free sample from our factory.



Item

Parameter

Item

Parameter

Processing Service

Cutting, Mould opening, Punching

Application

Construction, Doors&windows, Energy‑saving Build

Production Technology

Pultrusion

Place of Origin

Henan, China

Model

MS142 Fiberglass Sliding windows

Brand

Enbuess

Surface Treatment

Water‑based Polyurethane paint, full RAL color customizable

Product Material

Glass Fiber Reinforced Polyurethane

Profile Type

Door & Window Frame Profiles, Sunroom Profiles

Thermal Conductivity (U‑value)

1.1-1.4W/(m2 ·K)

Production Process

Pultrusion Molding

Product Performance

Air tightness Cl5, Wind C5, Water tightness 6A per…

Application Scenarios

Passive House, NZEB, Low‑energy buildings, Residences, Coastal…

Fire Rating

Equivalent to EN 13501‑2 E60

Corrosion Resistance

Superior salt spray resistance, ideal for coastal high‑corrosion areas

Customization Service

OEM/ODM, mold custom, 1‑6m length, color & fire rating…

Standard Compliance

ISO9001, ISO14001, ISO45001 certified;








Paint Finishing Techniques and Color Advantages

Our facade-grade window, door and supporting profiles feature a uniform water-based polyurethane finish with precise RAL color matching, designed for large-scale building envelopes. The coating delivers excellent UV stability and color consistency across all profile types, preventing uneven fading, peeling and cracking over time. This ensures a cohesive, premium facade appearance across the entire building exterior.

Flexible Partnership Models

We provide integrated facade profile solutions including windows, doors and supporting mullion sections, all with consistent finish and dimensions. Order full-length profiles for on-site fabrication, or pre-fabricated units ready for curtain wall installation. We can coordinate deliveries with your facade installation schedule and customize cross-sections to match your facade module design.

Production Processes

Moving beyond simple tonnage pricing, our profiles are system-engineered for facade-level performance in water tightness, air tightness, wind load resistance and acoustic insulation. Premium branded resins, glass fiber reinforcements and coatings are standard, and full pre-paint surface treatment is never omitted. Automated pultrusion lines deliver tight dimensional tolerances and uniform finish quality, essential for seamless facade assembly and long-term aesthetic performance.

After-Sales Service

Our engineering team supports facade contractors with joint detailing, installation guidance and on-site quality inspection. We provide clear warranty coverage for all facade products and fast resolution of any finish or performance issues, helping you achieve the intended facade result and meet project acceptance criteria.






53

GRFPU Pultrusion Process

GRFPU material as one thermoset composites are built up by polyurethane resin as a matrix (about 20%) in combination with continuous fiber-reinforced (about 80%) materials, which is produced through a proprietary injection pultrusion molding process into a specific cross-sectional profile.

1. Reinforced fiberglass (80% Glass fiberglass Rovings)

2. Measuring pump

3. Guide plate

4. MDI storage tank

5. PPG storage tank

6. Static mixer

7. Injection die

8. Heated pultrusion die

9. Crawler pulling device

10. Cut off Saw

11. Finished profile








Material Property

Corrosion Resistance Performance


During the chemical corrosion test process
1 1

Aluminum/Polyurethane

1 2
Aluminum/Polyurethane
1 3
Aluminum/Polyurethane








After the chemical corrosion test process
1 4
Polyurethane/Aluminum

5% HCL

(hydrochloric acid)

for 66 hours

1 5
Polyurethane/Aluminum

10% NaOH

(natrium hydroxydatum)

for 24 hours

1 6
Polyurethane/Aluminum

Na₂CO₃

(natrium carbonicum)

for 106 hours






Performance Testing

1

SOUND INSULATION



Sound insulation, quiet living

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.

2001

HIGH STRUCTURAL STRENGTH



High strength, strong and durable

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.

3

CORROSION & AGING RESISTANCE



Corrosion and moisture resistant

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.

4

FIRE RETARDANT



Fire retardant safety performance

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.

5001

EXCELLENT WEATHER RESISTANCE



Weather & aging resistant

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.

6

LOW CARBON



Low carbon, energy-efficient

We provide official factory warranty. Under normal installation and use, non-artificial quality problems are eligible for maintenance and replacement services.






Application Scope

1

01

VILLA & RESIDENCE

2

02

HOTEL & APARTMENT
3001

03

COMMERCIAL BUILDING
4001

04

COASTAL ENGINEERING PROJECT
5

05

SEVERE COLD TEMPERATE REGION BUILDINGS
6

06

PUBLIC BUILDINGS SUCH AS SCHOOLS AND HOSPITALS






Production Process

01Organize the yarn
Organize the Yarn
02Threading yarn
Threading Yarn
03Heat curing
Heat Curing
04traction pultrusion
Traction Pultrusion
05Cut
Cut
06Quality Inspection
Quality Inspection






Our After-sales Service

001
negotiate
2001
Customer service
001
after-sales service
001
Product cutting
001
Raw materials
001
Inspection passed
001
quality inspection
001
Sign for delivery





Hot Tags: ms142 fiberglass sliding windows, China ms142 fiberglass sliding windows manufacturers, suppliers, factory
