Pultruded FRP angle-section corner post for warehouse pallet racking. Replaces galvanized steel in cold-storage, humid, coastal, and chemically washed warehouses where conventional steel racking rusts or loses coating.
Request rack drawing quote Download spec sheet (PDF)
STANDARD SECTION AT A GLANCE
Standard angle leg: {{80}} × {{80}} × {{8}} mm (custom sizes on request)
Standard length per piece: Up to {{12}} m
Resin system: Vinyl-ester (FR); isophthalic (economy)
Compressive strength (axial): {{verify published value}} MPa (ASTM D695)
Volume resistivity: > 10⁸ Ω·cm (non-conductive)
Operating temperature: {{−50 °C}} to {{+90 °C}} continuous (resin dependent)
Fire performance: ASTM E84 Class A on request; ASTM D635 self-extinguishing
Standard color: RAL {{7035}} grey; other RALs on request
What the buyer is trying to solve
Why the page exists.

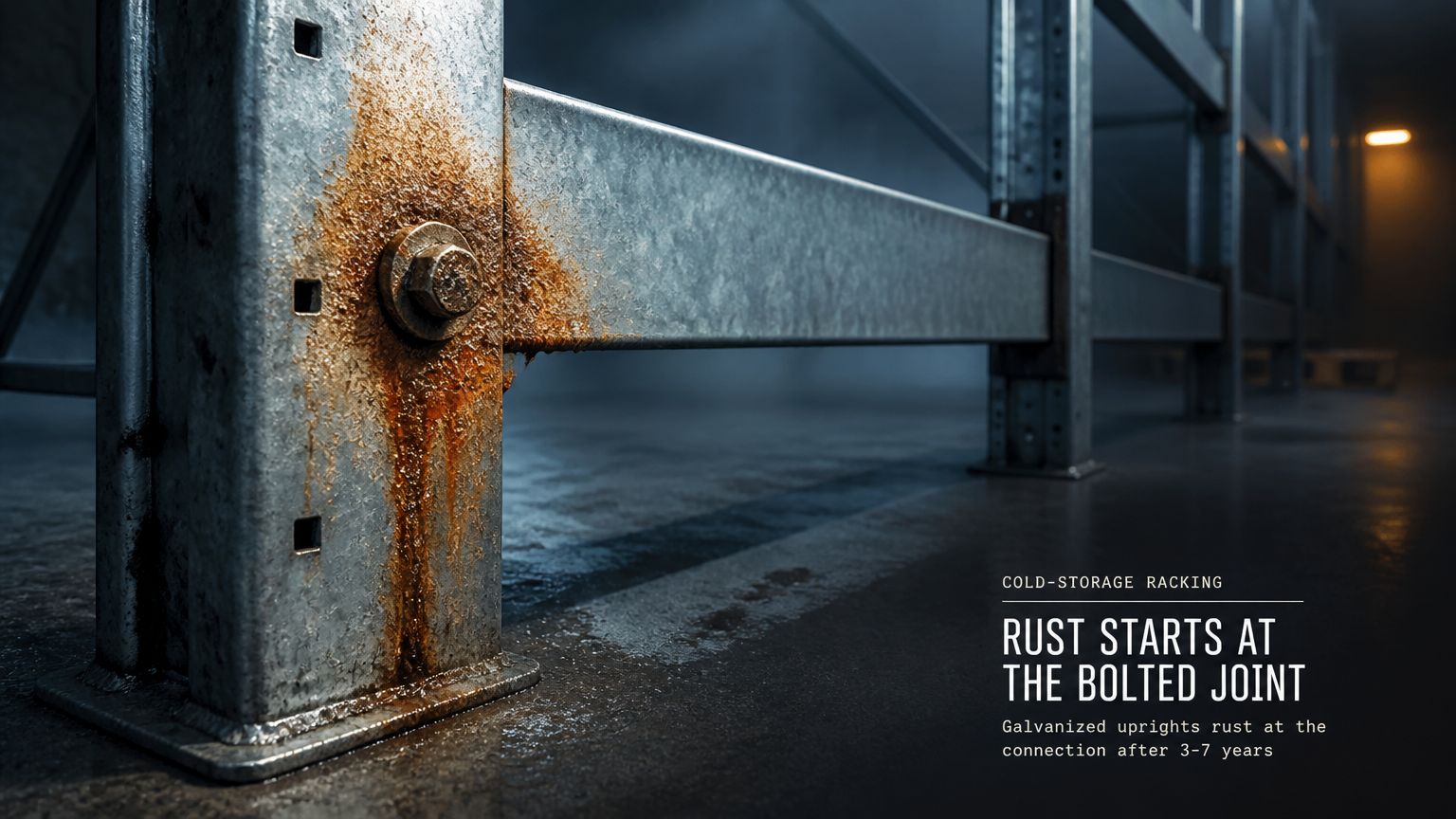

The buyers who arrive at this page are rack-system OEMs and warehouse asset managers who are evaluating a replacement for the galvanized-steel corner post in their pallet racking. Their existing galvanized rack is showing rust at the bolted connection after {{3–7}} years; their cold-storage rack has white rust and reduced coating at every cold-cycle. They want a corner post that survives the warehouse atmosphere for 20+ years without recoating, that holds its compressive load rating under the rack PE's published design, and that bolts into the existing horizontal-beam connection without re-engineering the rack.
Atmospheres where FRP corner post is the right answer
- Cold storage / freezer
- Humid warehouse
- Coastal warehouse
- Chemical wash-down
- ESD-sensitive load (electronics)
- Food & pharma cold chain
- Salt-spray port warehouse
Specifications
|
Profile family |
Pultruded FRP angle section; standard {{80}} × {{80}} × {{8}} mm; custom to {{150}} mm leg |
|
Standard length per piece |
Up to {{12}} m; project-specific longer pieces on request |
|
Resin system |
Vinyl-ester (FR); isophthalic (economy); phenolic (HL3-rated) on request |
|
Glass schedule |
Continuous unidirectional roving + mat, balanced orthogonal |
|
Compressive strength (axial) |
{{verify published value}} MPa (ASTM D695) |
|
Flexural strength |
{{verify published value}} MPa (ASTM D790) |
|
Volume resistivity |
> 10⁸ Ω·cm (non-conductive) |
|
Operating temperature |
{{−50}} °C to {{+90}} °C continuous (resin dependent) |
|
UV package |
UV-9 inhibitor integral + UV-stable topcoat on visible surfaces |
|
Fire performance |
ASTM E84 Class A on request; ASTM D635 self-extinguishing |
|
Standard color |
RAL {{7035}} grey; other RALs on request |
|
Anchor to floor |
Stainless A4 or FRP base plate with chemical anchor to concrete slab |
|
Beam-to-upright connection |
Standard beam-hook geometry; project-specific on request |
|
Design life |
{{25}} years in warehouse atmosphere |

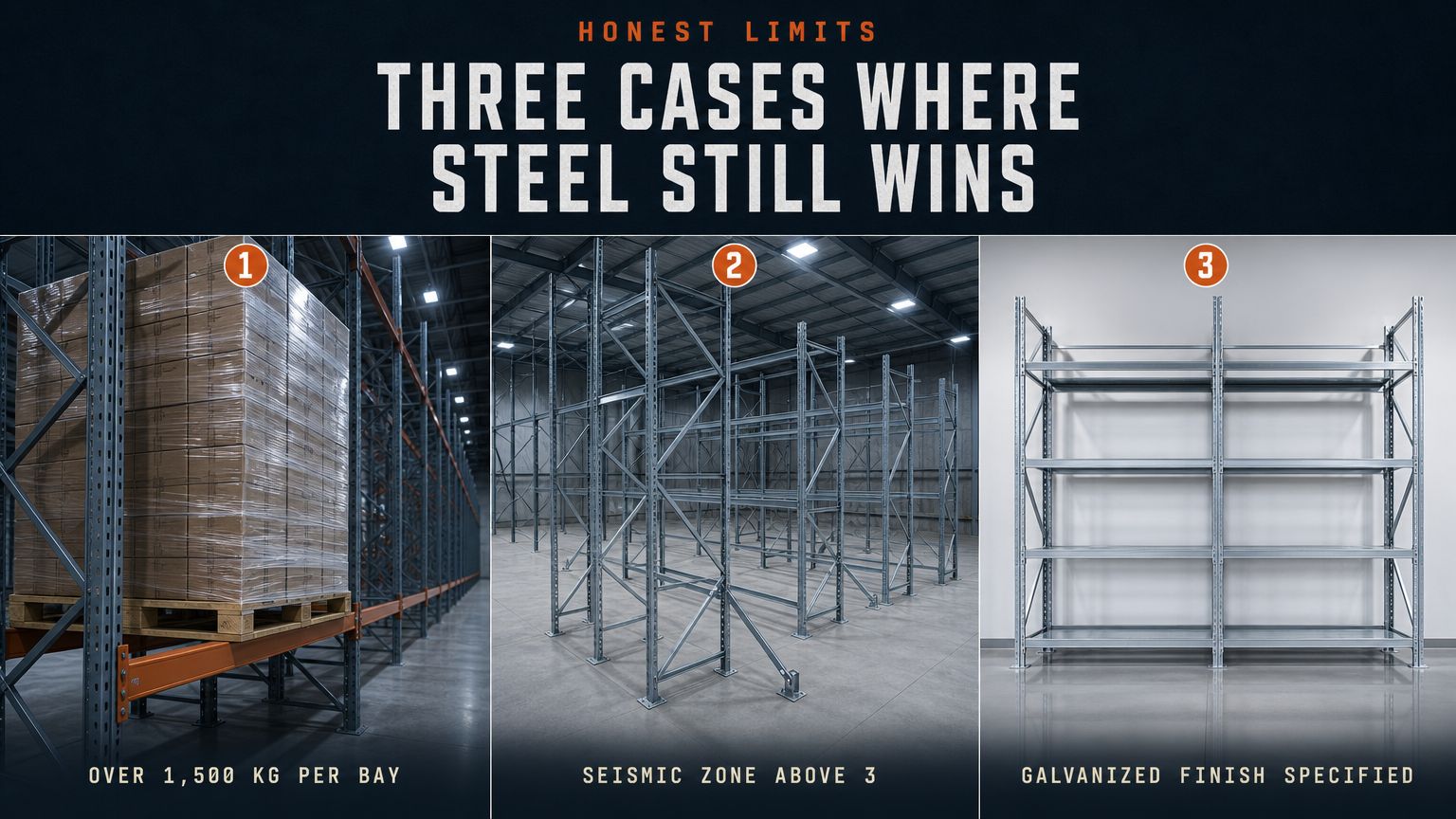

When not to specify FRP corner post
Cases where steel remains correct.
Three cases where we redirect
- Very heavy pallet load above {{1,500}} kg per bay. FRP has lower compressive stiffness than steel; very heavy-bay racking remains a steel design. Verify the per-bay load on first article.
- Seismic zone above zone 3. FRP rack frames require a project-specific structural analysis in high-seismic zones. The PE evaluates per project.
- Architectural metal finish required. If the owner has specified a galvanized or stainless visual in the procurement spec, FRP cannot match it visually. Specify the metal and budget for the coating cycle.

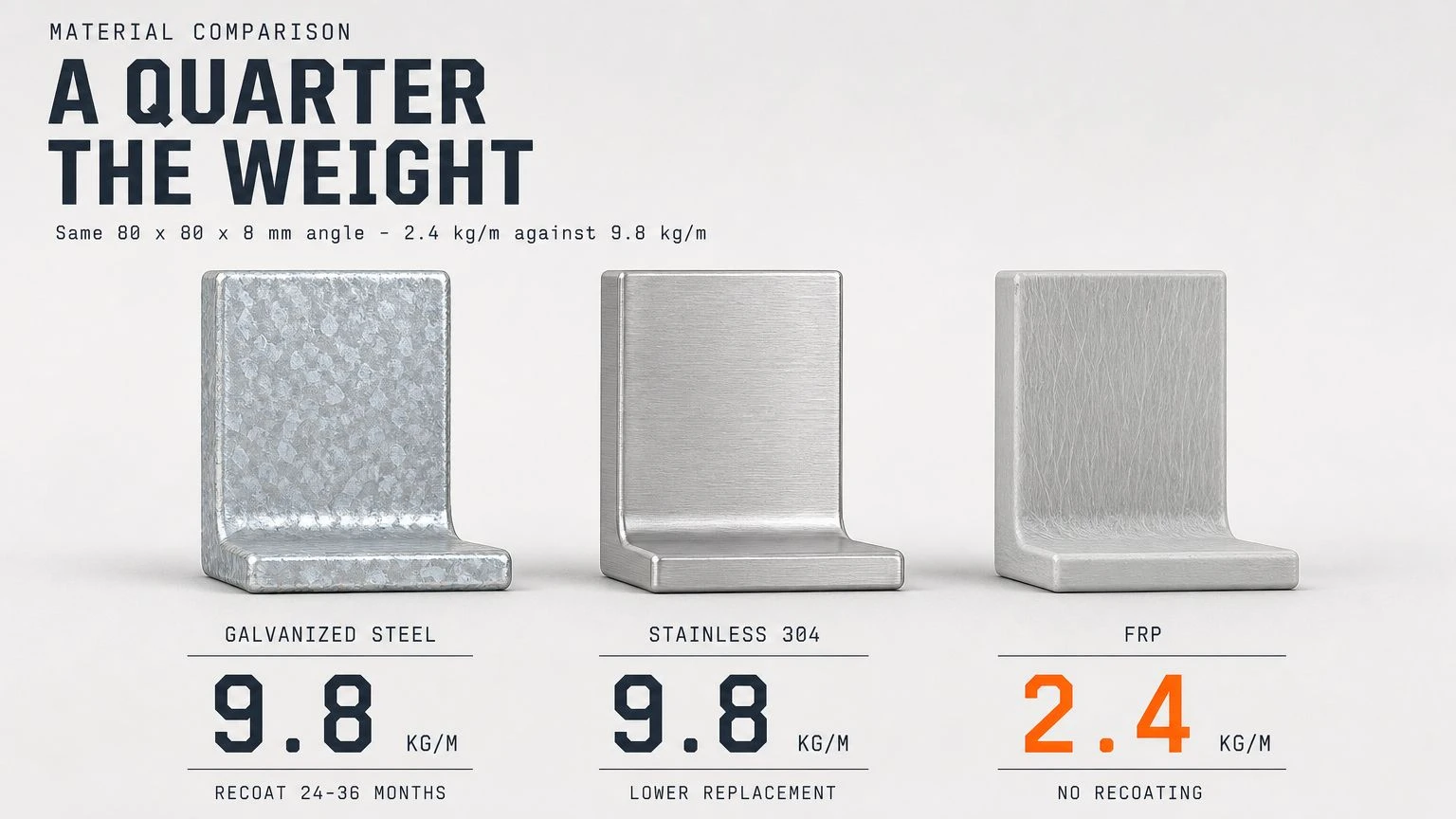

Material comparison
|
Property |
Galvanized steel angle |
Stainless 304 angle |
Enbuss FRP angle |
|
Mass per metre ({{80}} × {{80}} × {{8}} mm) |
~ {{9.8}} kg/m |
~ {{9.8}} kg/m |
~ {{2.4}} kg/m |
|
Cold-storage cycle |
White rust at bolt |
Acceptable |
No degradation |
|
Coastal warehouse cycle |
Red rust at bolt |
Pitting at welds |
No degradation |
|
Coating cycle |
{{24–36}} months |
None |
None |
|
Electrical isolation |
Conductive |
Conductive |
Non-conductive |
|
Site fabrication |
Weld + drill |
Weld + drill |
Cut + bolt |
|
25-yr cost (cold-storage warehouse) |
3 recoat cycles + possible replacement |
Lower replacement |
No replacement |

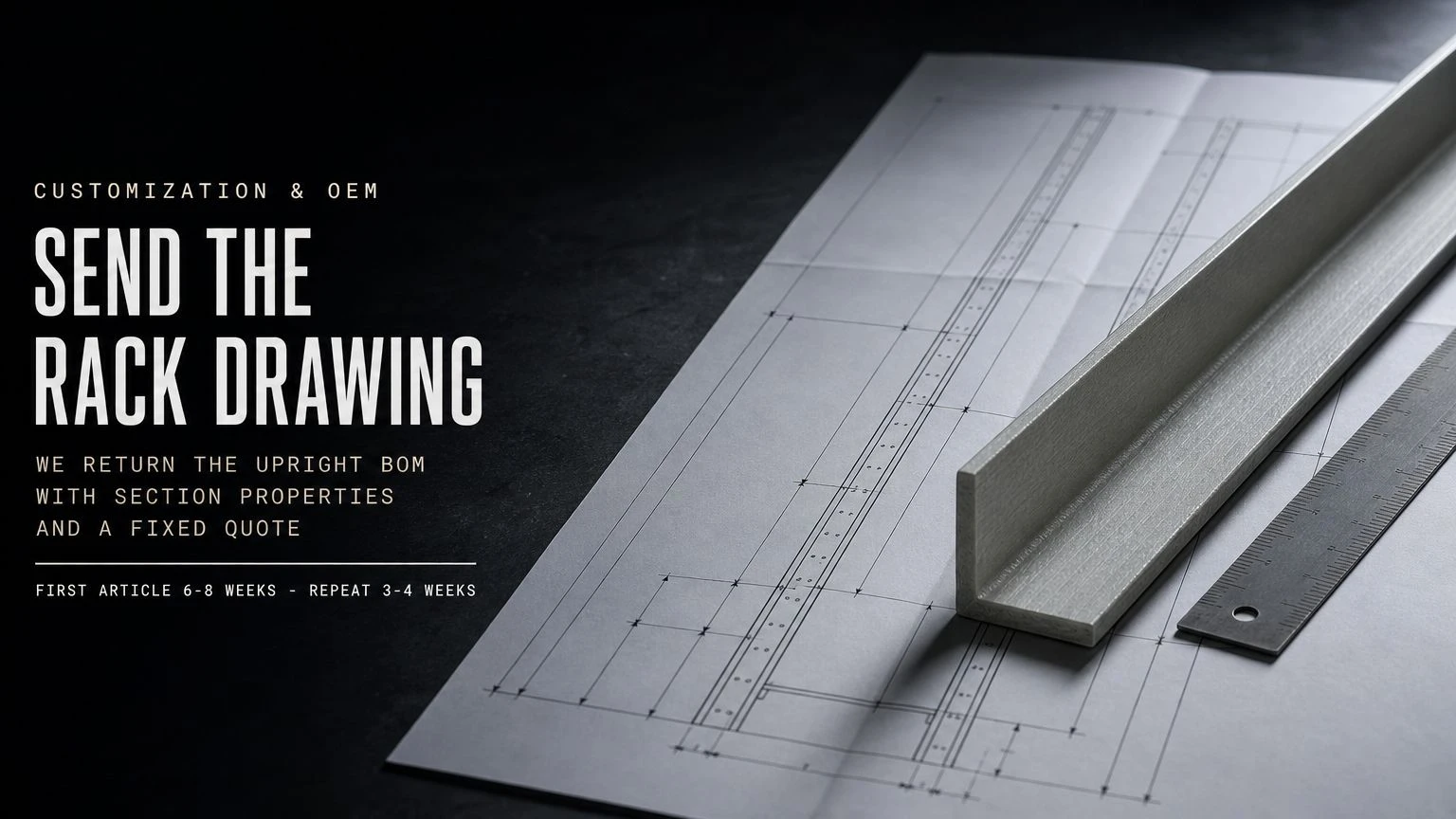

Customization & OEM
Rack-system OEMs typically need a complete kit of uprights and beam-hook connections to the project's bolt pattern. Send the rack drawing; we return the upright BOM with the published section properties and a fixed quote. First article {{6–8}} weeks; repeat {{3–4}} weeks.
Frequently asked questions
What is the typical lead time for a {{5,000}} post order?
From PO to first delivery, typically {{8–10}} weeks for standard {{80}} × {{80}} × {{8}} mm angles. Custom size adds {{2}} weeks.
Is the corner post compatible with standard beam-hook connections?
Standard upright geometry accepts conventional beam-hook connectors. If your racking uses a proprietary beam-hook profile, a project-specific connection detail may be required - send the beam-hook drawing and we will confirm on RFQ.
What is the load rating?
Compressive strength per ASTM D695; per-bay load rating depends on the rack geometry and the project PE's evaluation. We provide the section properties; the rack PE sizes the rack.
How is the post anchored to the warehouse floor?
Stainless A4 base plate with chemical anchor to the concrete slab; through-bolted to the floor beam if present. Anchor pattern per project.
How is the post inspected in service?
Visual at annual warehouse walk-around; look for surface damage, UV chalking, or impact cracks. Any visible crack or fiber exposure is grounds for replacement. Inspection interval typically annual.
Is the post recyclable?
Vinyl-ester pultrusions can be shredded and used as filler in non-structural concrete. We offer a take-back program in pilot regions.
Can the post be supplied with a non-angled alternative?
Yes. C-section and box-section pultrusions are available on request. Specify on RFQ.
What documentation comes with each shipment?
Per shipment: dimensional inspection, resin lot certificate, ASTM E84 (if specified), structural PE stamp (on request), installation drawing.

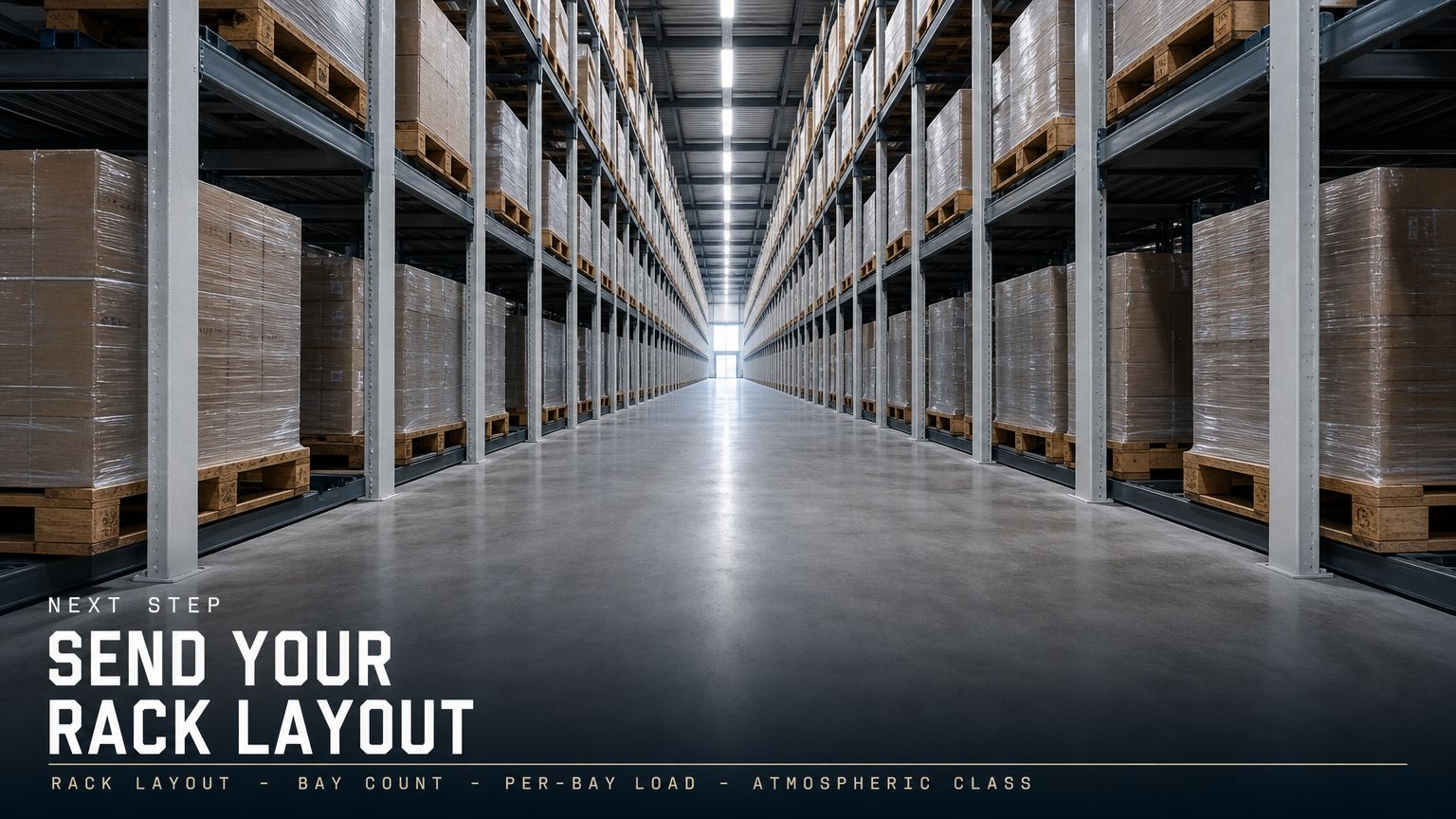

Send a rack drawing
Send the rack layout, the bay count, the per-bay load, and the atmospheric class. We return an upright BOM with section properties, a fixed quote, and the certification pack.
